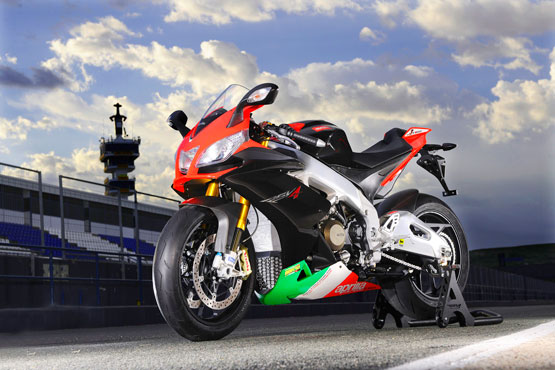

APRILIA RSV4 FACTORY APRC SPECIAL EDITION
APRILIA'S DOMINATION IN THE WORLD SUPERBIKE CHAMPIONSHIP HAS GIVEN RISE TO A SPECIAL EDITION OF A MOTORCYCLE THAT ALREADY SET NEW STANDARDS FOR THE SUPERSPORTS STREET BIKE GENRE: THE APRILIA RSV4 FACTORY APRC SPECIAL EDITION IS THE NEW BENCHMARK FOR THE SUPERSPORTS SEGMENT.
ULTRA-SOPHISTICATED ELECTRONIC MANAGEMENT: THE APRC PACK LETS THE RIDER FREELY ADJUST EVERY SINGLE ASPECT OF THE BIKE'S PERFORMANCE AND HANDLING EXACTLY AS DESIRED.
Racing heritage
Created with the single-minded goal of being simply the best on the track and on the road, since its inception the Aprilia RSV4 has astonished the world with its looks, technology and performance. The first 65° V-4 engine ever in a sports production bike, a chassis worthy of a 250 GP, Ride By Wire, multimap engine management: all these are accomplished achievements for the Aprilia RSV4, that
tops unique architecture and specs with Aprilia's signature excellent rideability brought to the next level.
But records are made to be broken. Thanks to the unrelenting efforts of the Aprilia R&D department and a very close collaboration between Racing Department and production, the Aprilia RSV4 has made a giant leap forward.
The RSV4 Factory APRC Special Edition is a milestone in the history of super sport bikes. All of the racing expertise and indications gathered during the successful 2010 season of World Champion Max Biaggi were brought together in a bike that sets a new standard for future road bike development.
Unique adjustable traction control capable of self-adjusting to suit different types of tyres, wheelie control, launch control, quick shift: these are the RSV4 Factory APRC SE's new features that raise the bar in track performance even further up.
Aprilia's technological supremacy meant that every aspect of the electronic management system for the RSV4 Factory SBK, with which Max Biaggi dominated the 2010 World Superbike Championship, could be developed in house. As a result of the innovative know how developed on the circuit and the close collaboration between the team, the Racing Division and the manufacturing division, the transfer
of this technology from the track to production was practically instantaneous.
This is how the Aprilia people were able to turn out the fastest, most effective bike on the track, a bike whose only goal is to post the fastest lap. State of art technology.
This new technology is brought together in the APRC (Aprilia Performance Ride Control) package, basically the state of the art in dynamic performance control, a multi-patented system that makes Superbike winning technology available to professional racing riders and hobby riders alike. All this comes in an easy to use, intuitive package.
Aprilia RSV4 Factory APRC SE's improvements are not limited to the electronic management system. The 65° V4 engine offers improved lubrication and closer spaced gears for better acceleration. The new, lighter exhaust features an advanced butterfly valve management system to suit the Ride By Wire mapping for improved breathing and efficiency throughout the RPM range.
In addition, the Aprilia RSV4 Factory APRC SE is the first super sport bike sporting the homologated new-generation extra performance dual blend 200/55 tyres developed in collaboration with Pirelli based on the expertise gathered on World Superbike racing circuits.
Specifications
Engine type Aprilia longitudinal 65�‹ V-4 cylinder, 4-stroke, liquid cooling system, double overhead camshafts (DOHC), four valves per cylinder
Fuel Unleaded petrol
Bore and stroke 78 x 52.3 mm
Total engine capacity 999.6 cc
Compression ratio 13:1
Maximum power at crankshaft
180 HP (132.4 kW) at 12,250 rpm
Maximum torque at crankshaft
115 Nm at 10,000 rpm
Fuel system Airbox with front dynamic air intakes. Variable length intake ducts controlled via ECU.
4 Weber-Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-by-Wire engine
management.
Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Road)
Ignition Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and �gstick-coil�h-type coils
Starter Electric
Exhaust system 4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with engine control unit-controlled butterfly valve and integrated trivalent catalytic converter (Euro 3)
Alternator Flywheel mounted 420W alternator with rare earth magnets
Lubrication Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Transmission 6-speed cassette type gearbox
1st: 38/16 (2.375)
2nd: 35/18 (1.944)
3rd: 28/17 (1.647)
4th: 32/22 (1,455)
5th: 34/26 (1,308)
6th: 33/27 (1,222)
Gear lever with Aprilia Quick Shift electronic system (AQS)
Clutch Multiplate wet clutch with mechanical slipper system
Primary drive Straight cut gears and integrated flexible coupling, drive ratio: 73/44 (1,659)
Secondary drive Chain: Drive ratio: 42/16 (2.625)
Traction management APRC System (Aprilia Performance Ride Control), which includes Traction Control (ATC), Wheelie Control (AWC), Launch Control (ALC), all of which can be configured and deactivated independently.
Chassis Twin-spar adjustable aluminium frame, with castings and pressings.
Envisaged adjustments:
. headstock position and rake
. engine height
. swingarm pin height
Ohlins adjustable steering damper
Front suspension Ohlins Racing upside-down fork, . 43-mm stanchions (with Tin surface treatment). Low profile forged aluminium radial caliper mountings. Completely adjustable spring preload and hydraulic compression and rebound damping. Wheel travel: 120 mm
Rear suspension Double braced aluminium swingarm; mixed low thickness and sheet casting technology.
Ohlins Racing mono-shock absorber with completely adjustable piggy-back in: spring preload, wheelbase, hydraulic compression and rebound damping. APS progressive linkage. Wheel travel 130mm
Front: Dual 320-mm diameter floating stainless steel disc with lightweight stainless steel rotor and aluminium flange with 6 pins. Brembo monobloc radial callipers with 4 .34-mm opposite. Sintered pads. Radial pump and metal braided brake hose
Brakes
Rear: 220-mm diameter disc; Brembo floating calliper with two .32mm isolated pistons. Pump with integrated tank and metal braided hose
Wheel rims Aprilia forged aluminium alloy rims, completely machined, 5 split spokes.
Front:3.5�hX17�h
Rear: 6�hX17�h
Tyres Radial tubeless.
Front: 120/70 ZR 17
Rear: 200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR 17)
Dimensions (default settings)
Max. length: 2040 mm
Max. width: 735 mm (at the handlebar)
Max. height: 1120 mm
Min. height from the ground: 130 mm
Saddle height: 845 mm
Centre to centre distance: 1420 mm
Trail: 105 mm
Steering angle:24.5�‹
Kerb weight 179 kg *
Tank 17 litres (4-litre reserve included)
*Dry weight, without battery and fluids.
Source: http://www.totalmotorcycle.com/
